Name: Bel Power Solutions LDT2400-48
SKU: 936956

Product Details ＋

Product Attribute	Attribute Value
Configuration	Enclosed
Family Name	DIN Rail Power Family
Mounting Type	DIN Rail Mount
Number of Outputs	1 Output
Output Current	50 A
Output Power	2400 W
Output Voltage	48 VDC
Primary Type	AC-DC
Series

Overview

Bel Power Solutions LDT2400 Series — Class I 2400W Multipurpose Digital DIN Rail Power Supply:

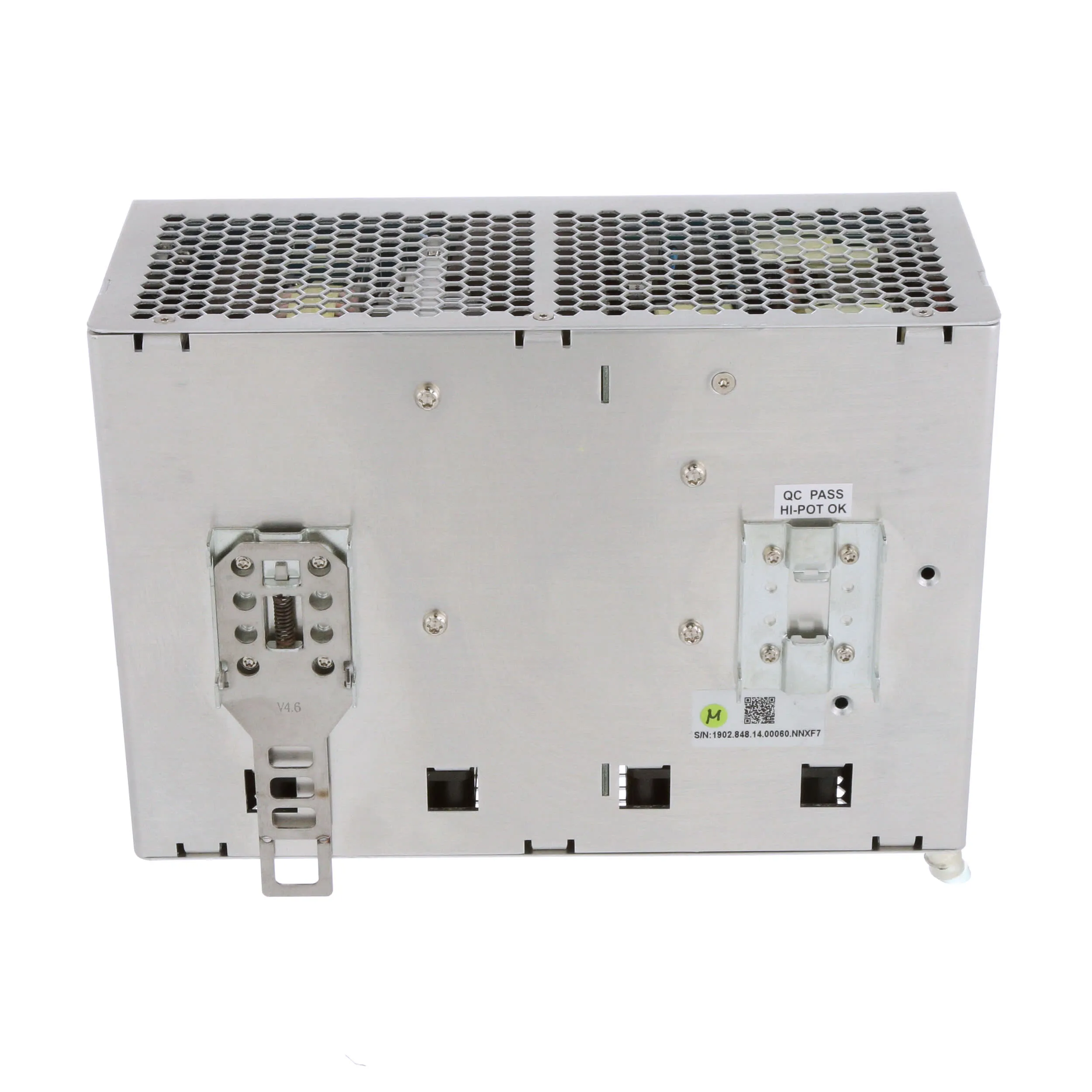

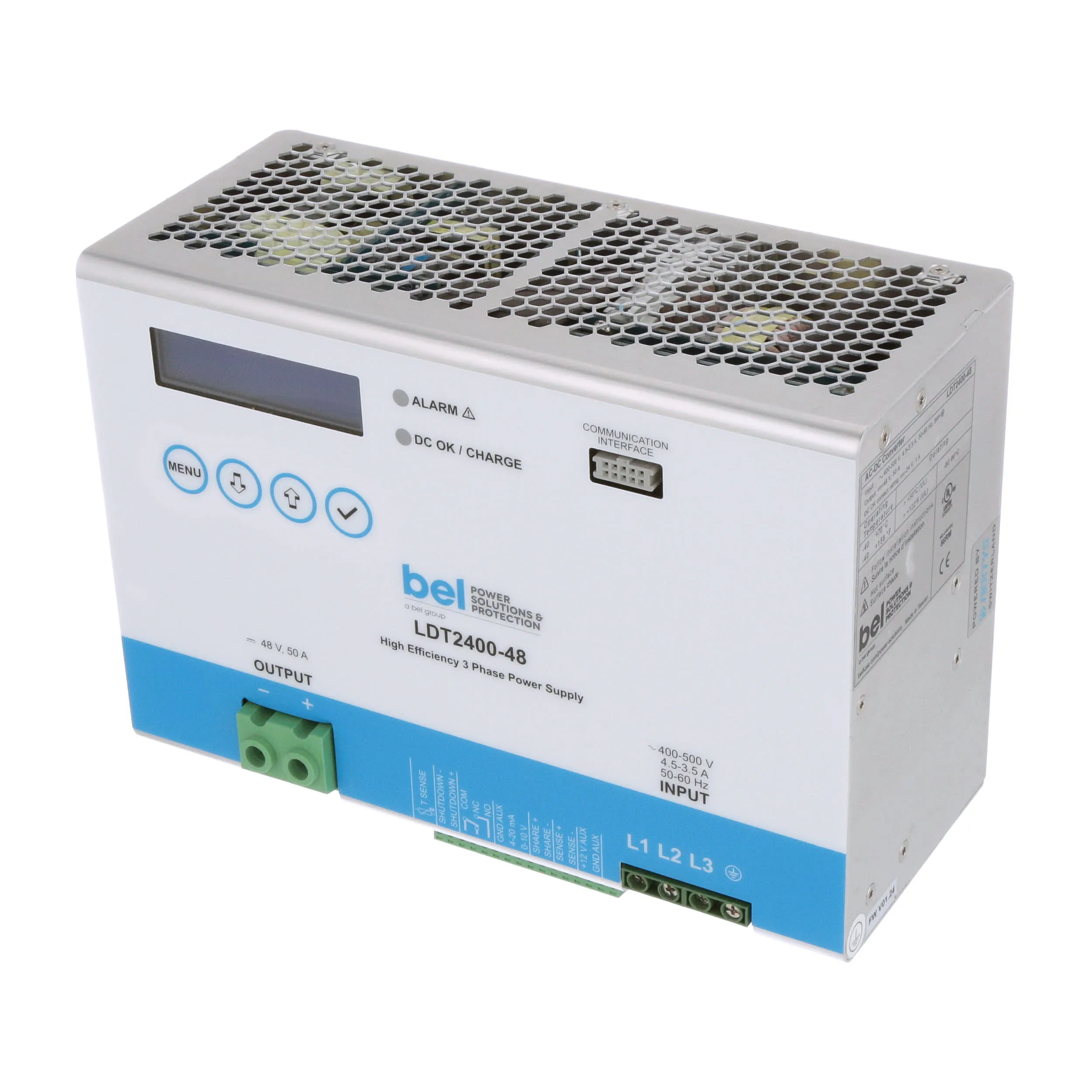

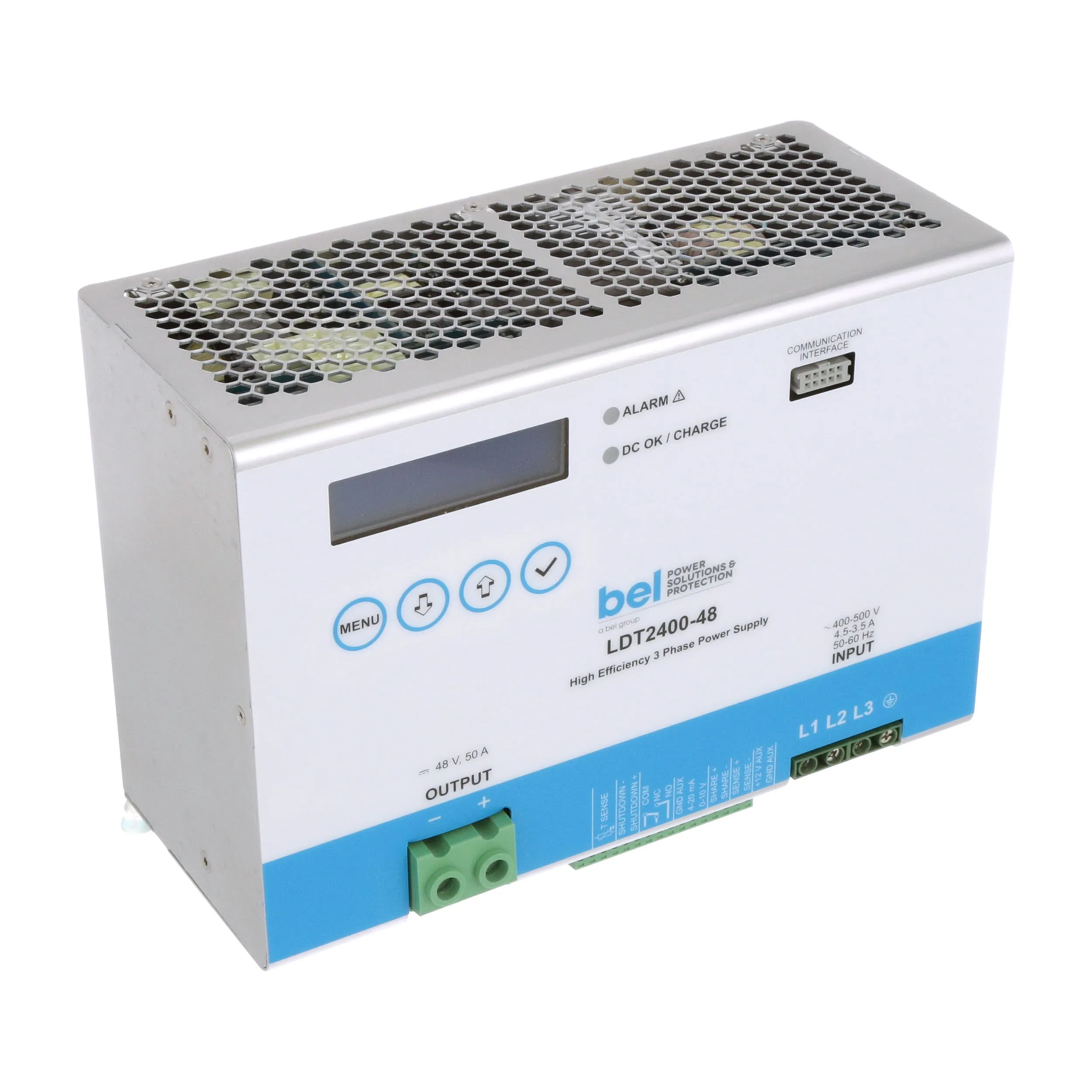

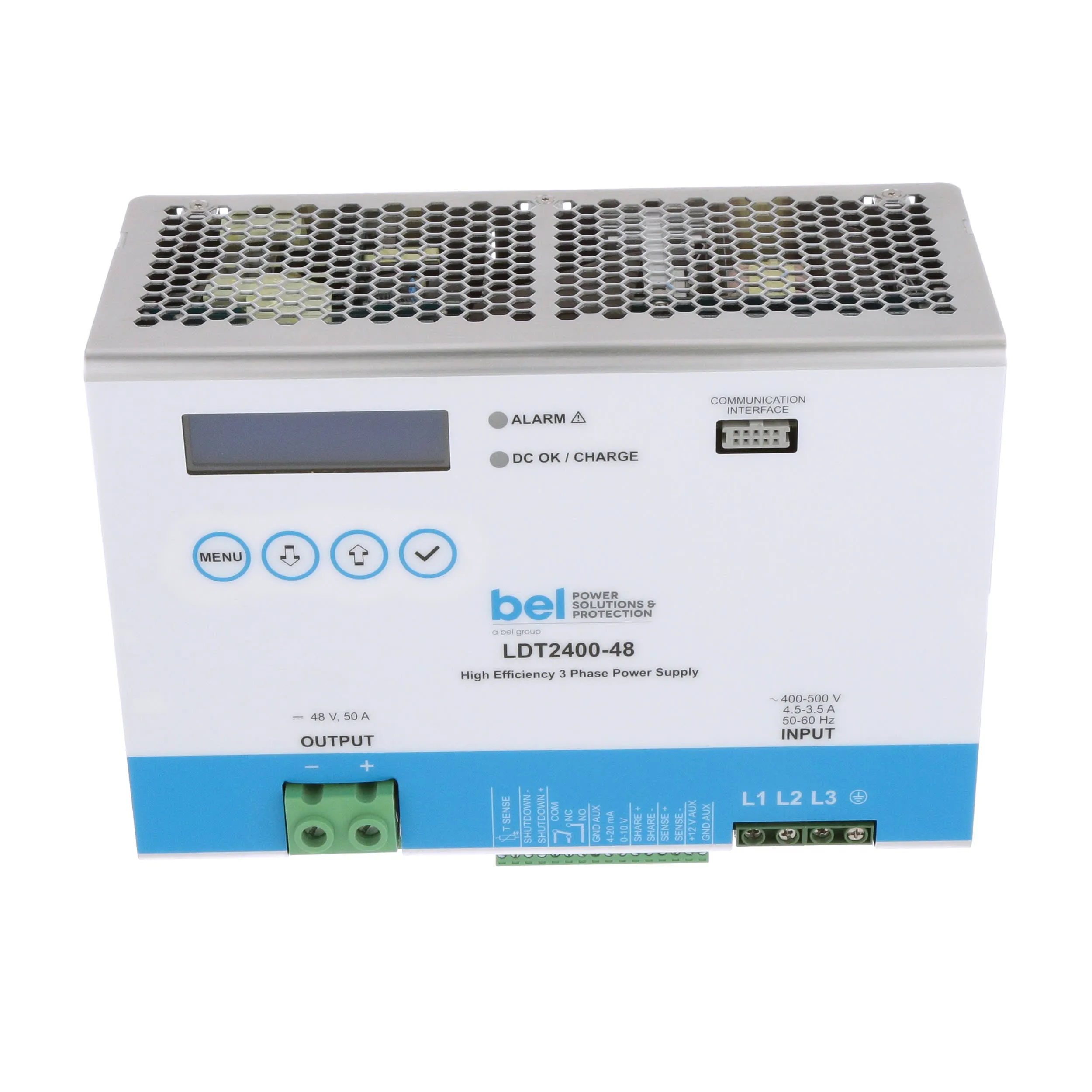

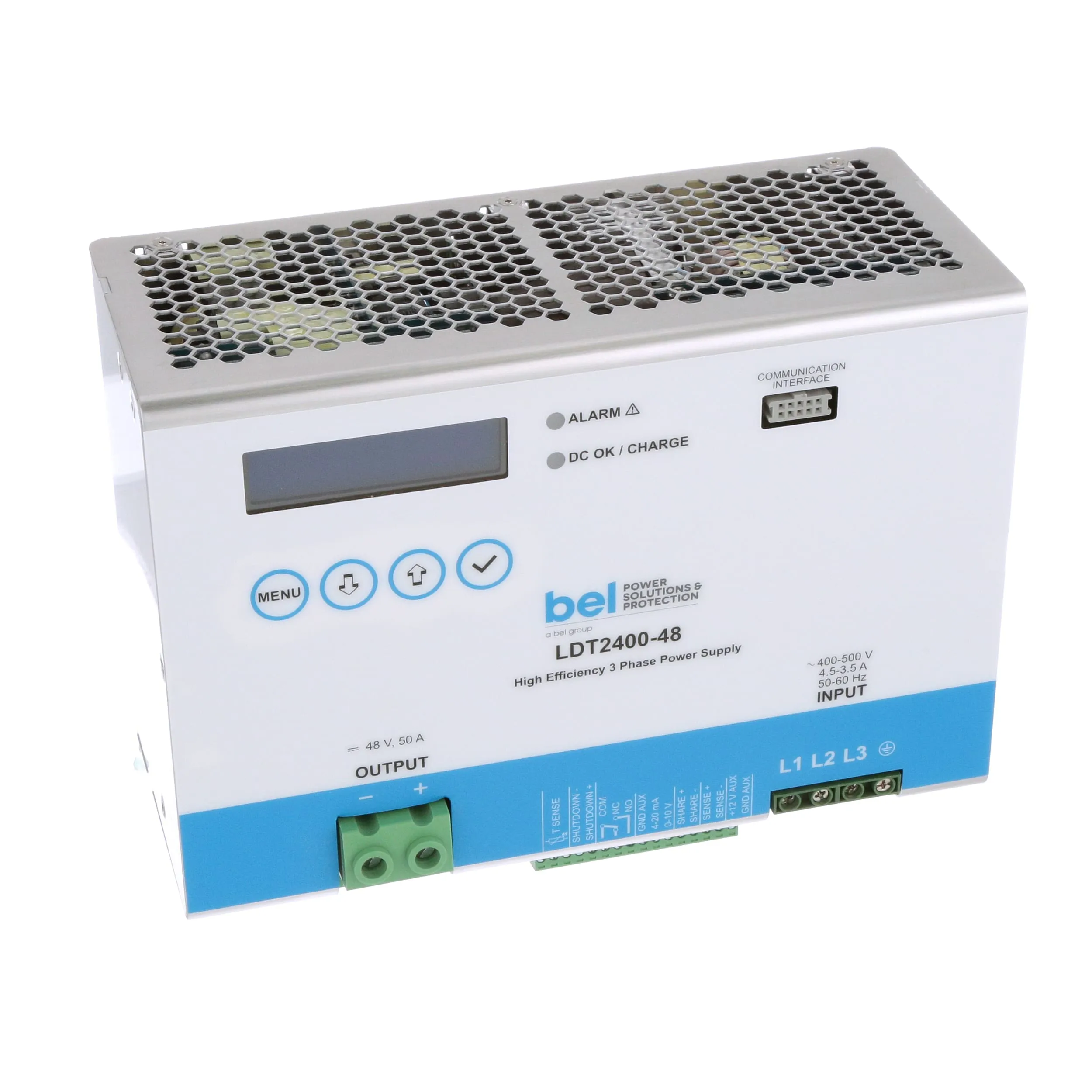

LDT2400 Series are high power multipurpose digital power supplies with three phase input voltage 400 – 500 VAC, delivering 2400 W of output power, covering output voltages from 24 to 170 V (model dependent). Their compact size, high efficiency and excellent reliability together with easy installation make them fit demanding applications where compactness and high power are needed. LDT2400 Series are Class I isolation devices suitable for SELV and PELV circuitry (up to 48 VDC models) and are designed to be mounted on DIN rail and installed inside a protective enclosure.

Features:

3 phase AC input: 400 – 500 VAC

Overload 150% (3600 W peak)

Active PFC for optimal efficiency

Active input surge suppressor for improved reliability

CPU control allows flexibility and multiple programmable features

Battery charger function included

Thermally regulated fan optimal cooling in harsh operating conditions

Wide output voltages range

Two phase operation possible with power derating

Applications:

Automation

Process Control

Communication
