Eaton C22 Series — M22, M30, C22 and C30, Pilot Devices with SmartWire-DT Communication | Global Modular Family:

One family. Endless possibilities. Eaton's C22 compact pushbutton line offers an industry leading array of functional, attractive, and ergonomically designed “all-in-one” illuminated and non-illuminated pushbuttons, selector switches, emergency stops and indicating lights. A sleek design and innovative controls are two of the latest Global Modular innovations that will first catch your eye. The most stunning thing about Eaton‘s expanded pilot device range, however, is what is behind it: The extremely broad variety of possibilities offered by the Global Modular family, C22/C30/M22/M30.

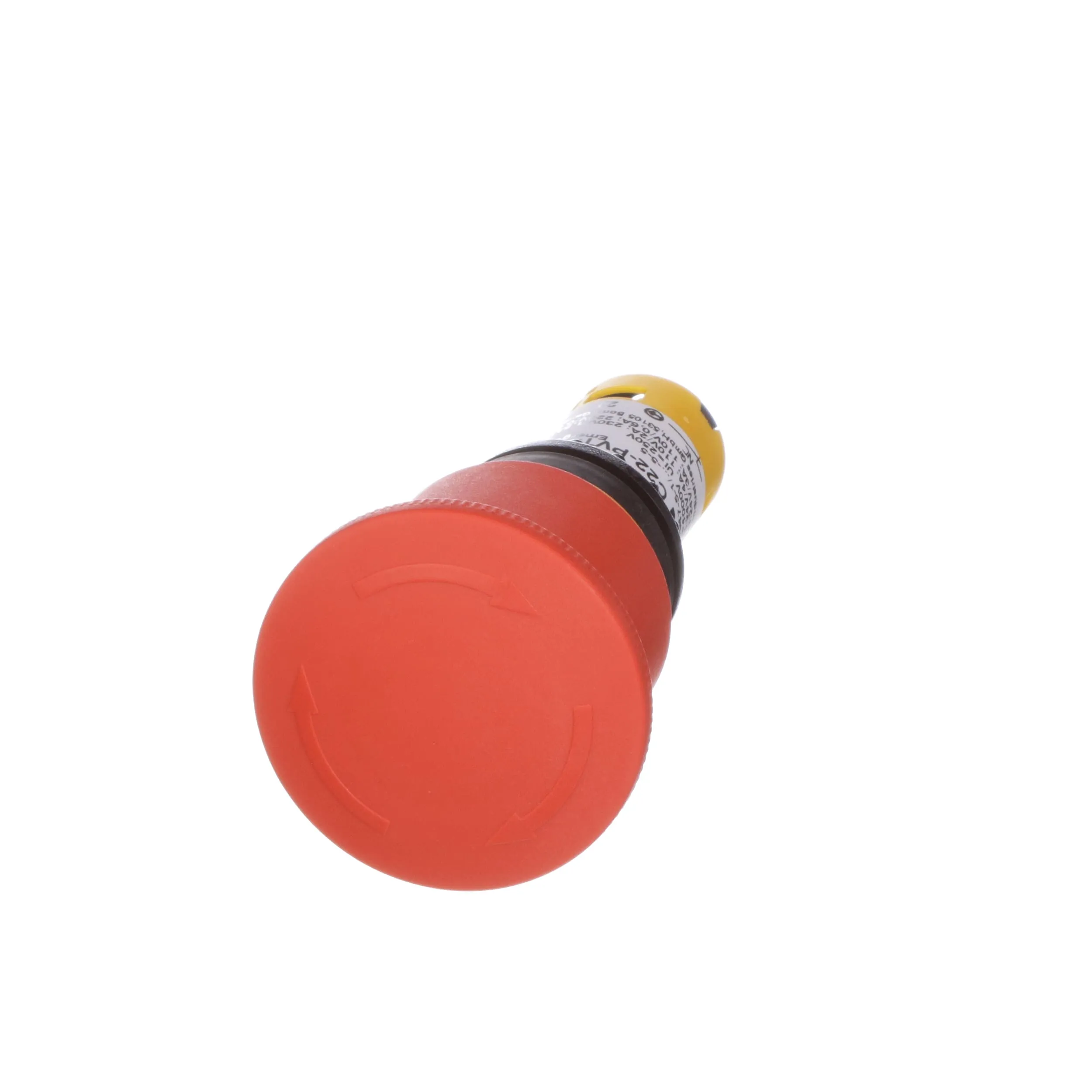

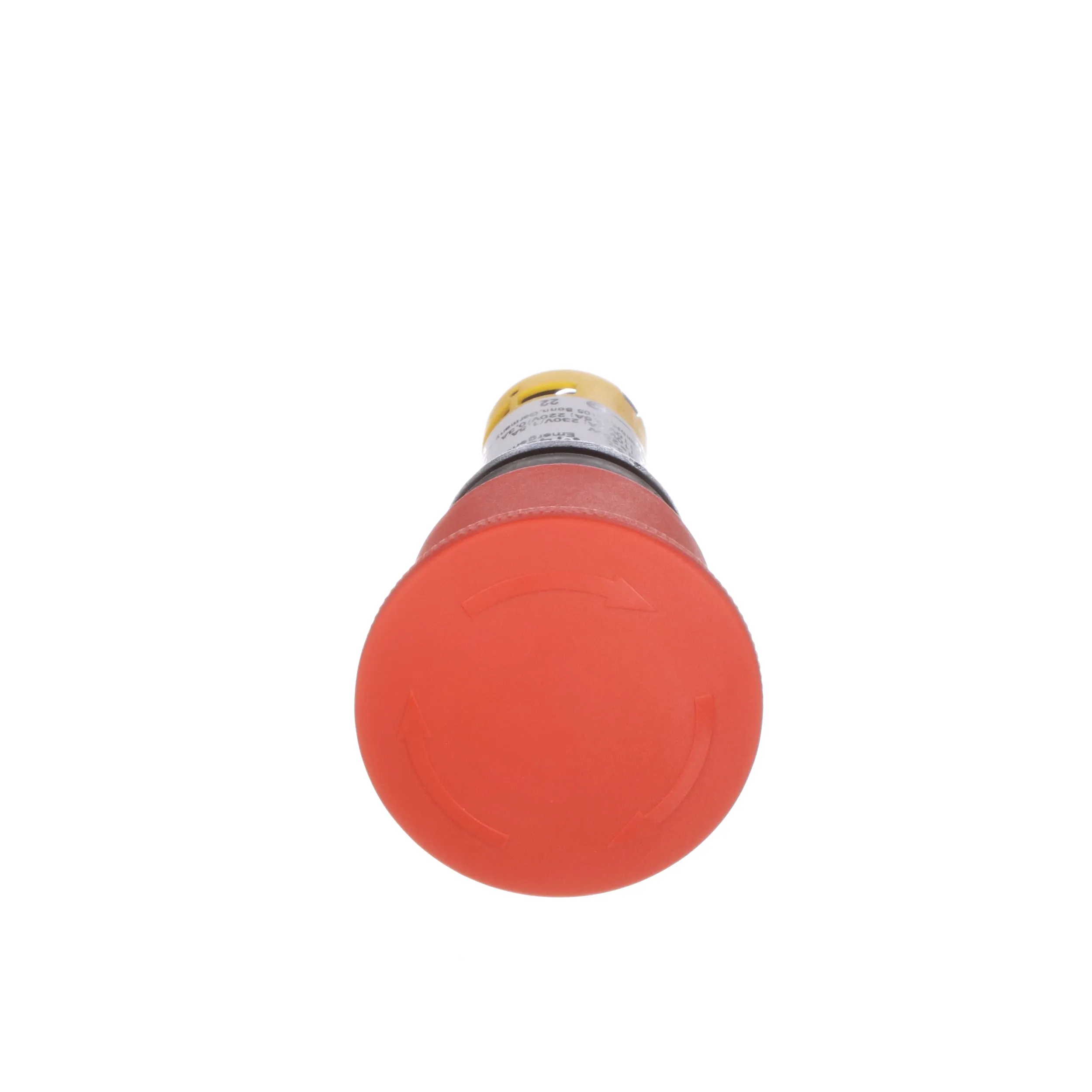

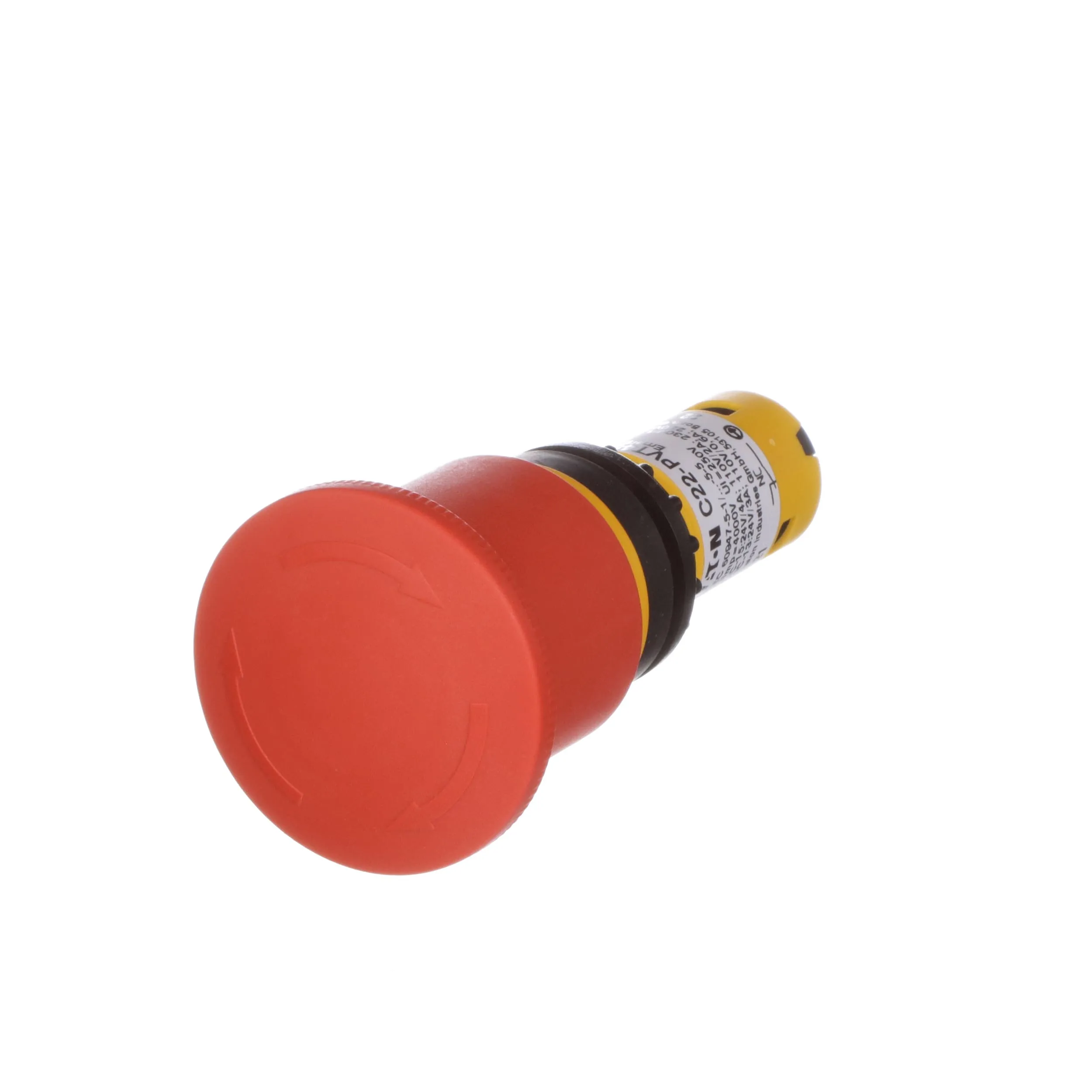

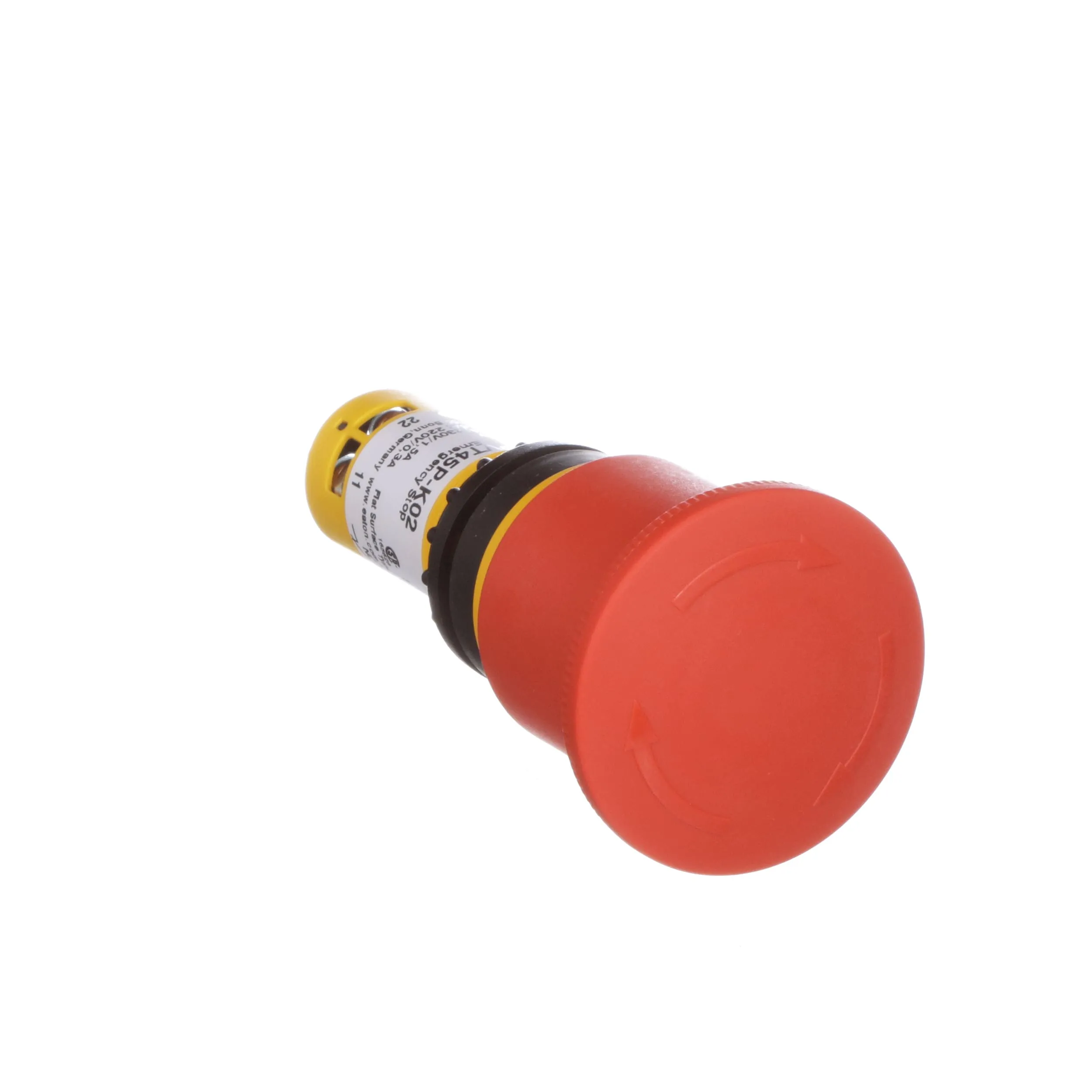

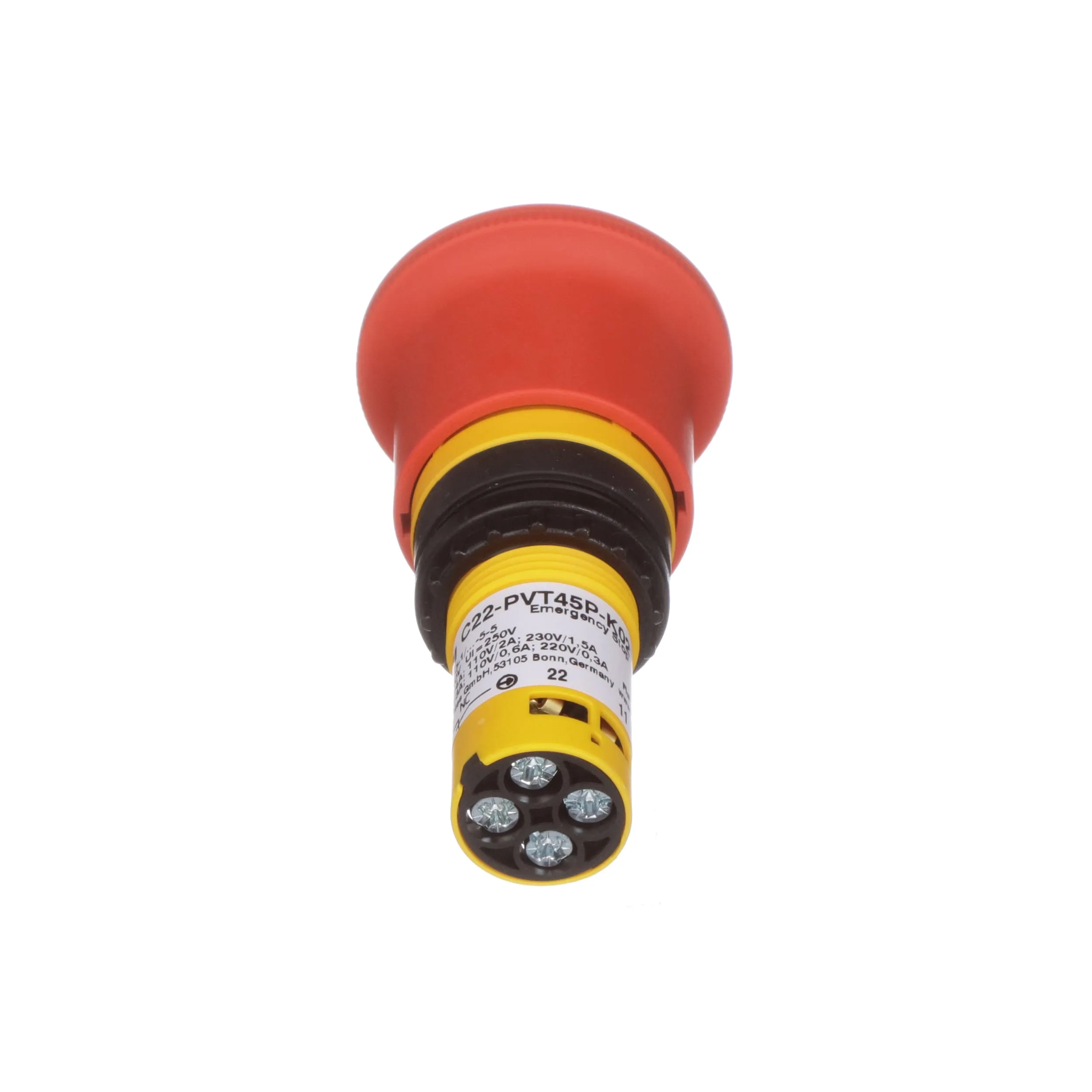

The convenient all-in-one C22 and C30 with pigtail integrates the required cable, connector, and housing in one single device. The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make them the perfect choice for applications in which oil-tight protection from dirt or liquids is required. C22 and C30 with pigtail meets the requirements inherent to industrial environments with harsh conditions. Their high degree of protection—up to IP69K in the front and IP65 in the back—ensures that they can be installed without an enclosure, near control panels and directly on machines.C22 with pigtail emergency stop buttons: Eliminate the need for a pushbutton enclosure, improve reliability, and reduce installation cost. With their high degree of protection in the front and at the back, these buttons are perfectly protected from dirt, dust and liquids.

C22 Series Features:
