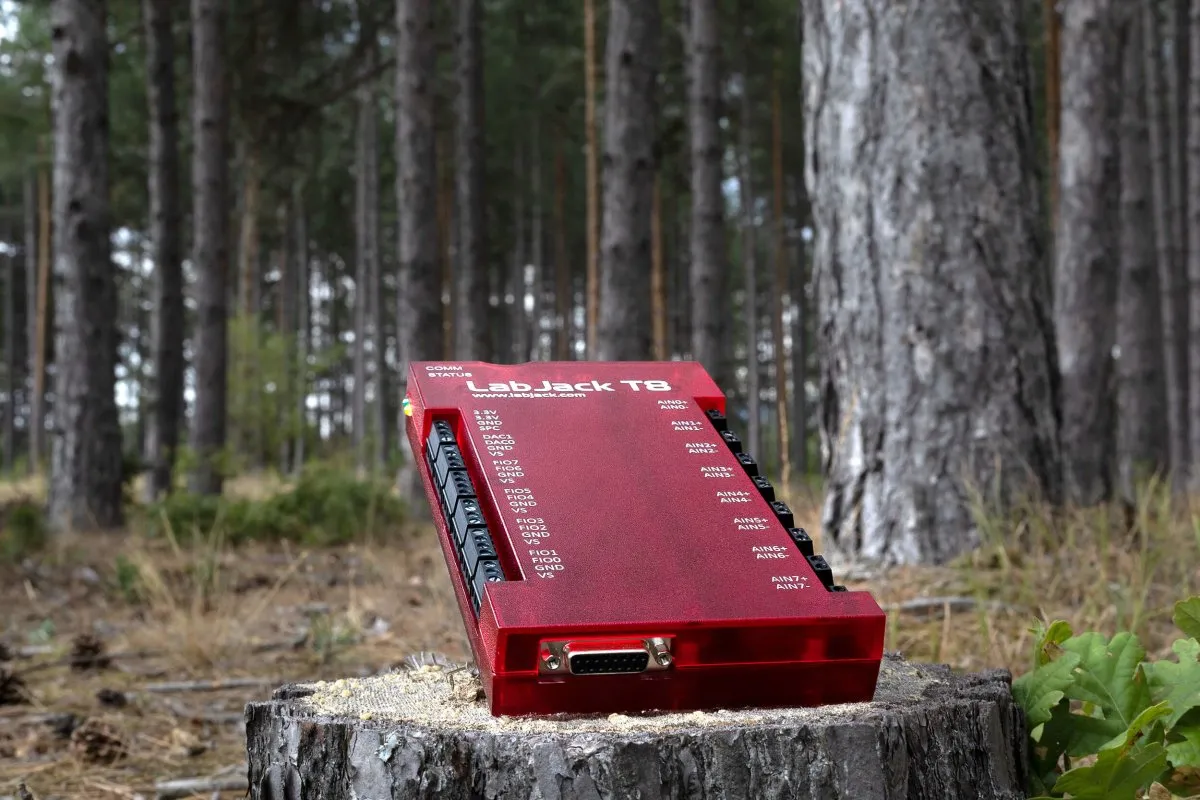

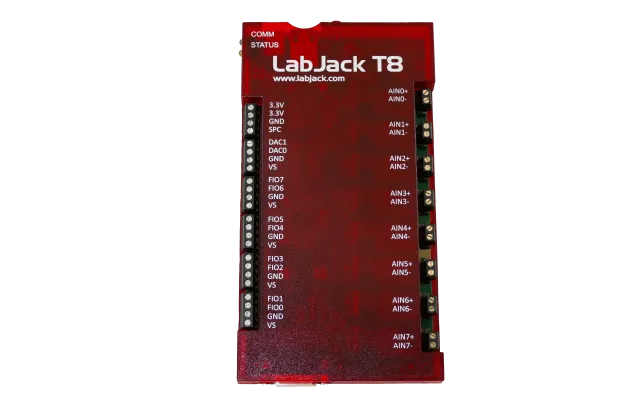

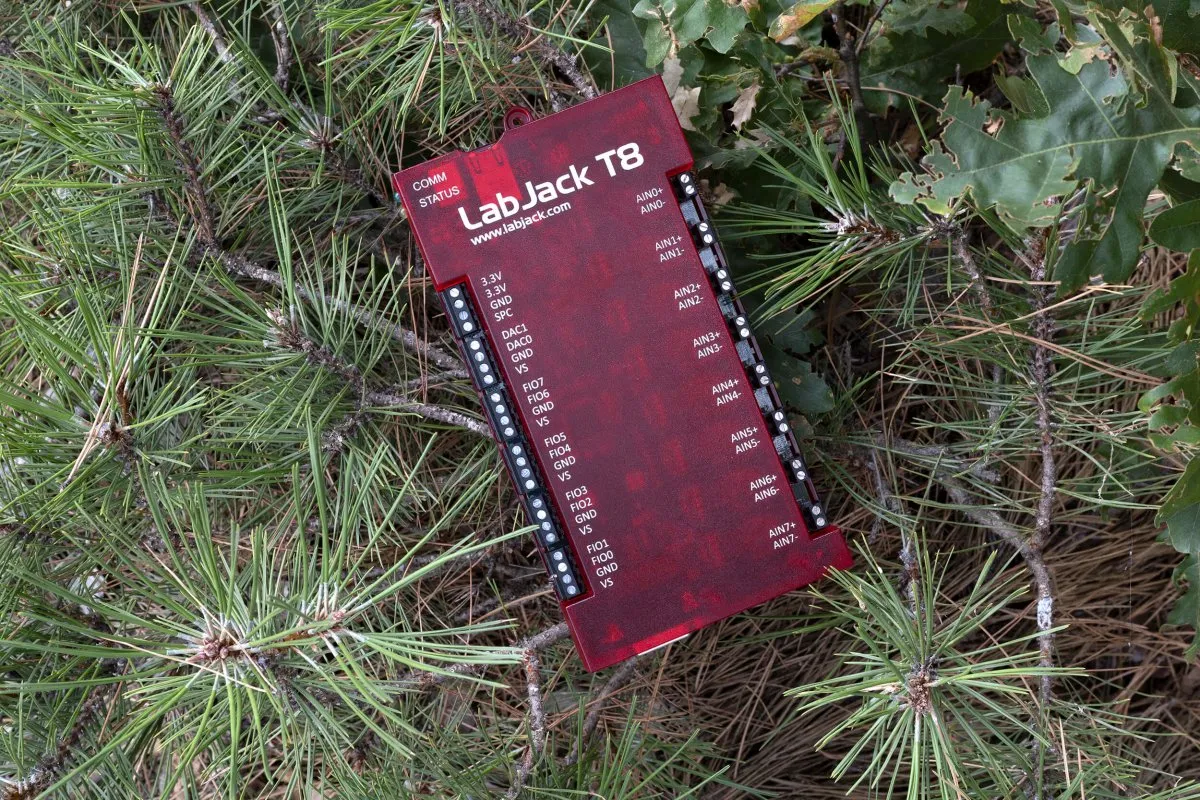

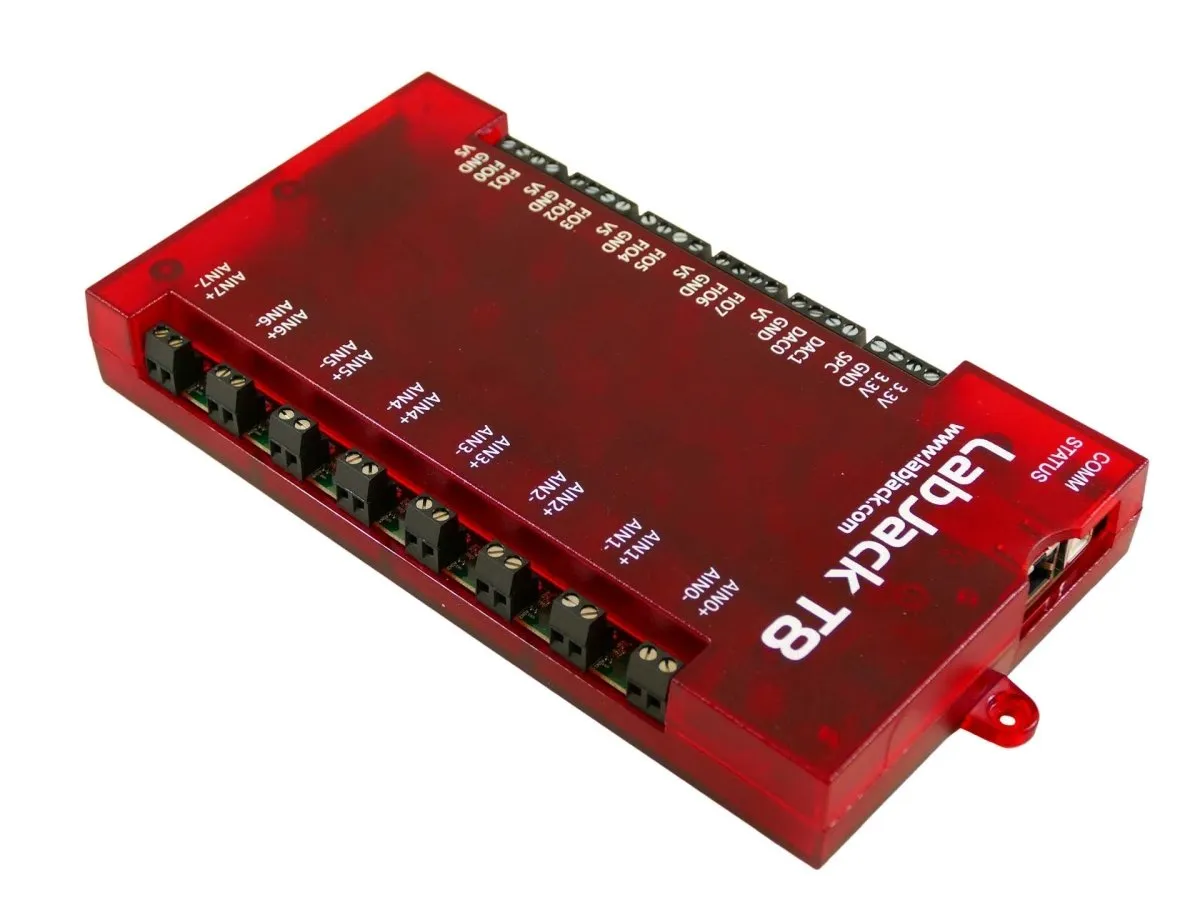

The LabJack T8 is the new flagship device adding powerful features including:

• 8x isolated analog inputs (AIN) with simultaneous sampling.
• ±1 kV AIN isolation channel-to-channel and channel-to-ground.
• Top performance for thermocouples, load cells, bridge circuits, and more.
• 8x 24-bit ΣΔ ADCs (up to 40k samples/s/ch).
• 10 AIN voltage ranges: ±11V, to ±0.18V.
• 2 analog outputs (16-bit, 0-10V) with 20 mA drive.
• 20 digital I/O similar to the T7.
• Lua scripts are faster with 5x the code space than the T7.
• 3.3V fixed voltage outputs for excitation.
• Supported by LJM. LabJack's free, 3rd generation, cross-platform driver/library/API for simplifying device communication.
• Industrial temperature range (-40 to 85C).
• USB & Ethernet.
• Built-in Power over Ethernet (PoE), or power through USB connection.
