Product Details
＋
Features:
- 500 MHz Probe Bandwidth
- Large Input Impedance at the Probe Tip 10 MOhm, 8 pF
- Compensation Range: 8 pF to 18 pF
- Cable Length: 1.3M
- 10X Attenuation Factor
- 300 V CAT II Input Voltage
- Compact Probe Head for Probing Small Geometry Circuit Elements
- Small Probe Body for Enhanced Visibility to the Device-Under-Test
- Replaceable Probe Tip Cartridges
- Large Accessory Set for Versatile Connectivity

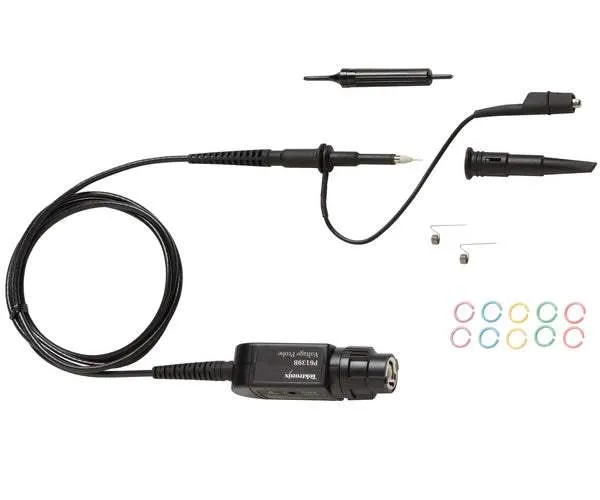

Standard Accessories
- Long ground spring (2)
- 6" alligator ground lead (1)
- Standard hook tip (1)
- Universal IC cap, 3.8 mm (1)
- Marker band set, 2 each of 5 colors (1)
- Adjustment tool (1)
- Manual (English only)
Connectivity:
- P6139B features the TekProbe Interface for Direct BNC Connection for Oscilloscopes with 1 MOhm Inputs
- Integrated Oscilloscope and Probe Measurement Systems Feature Intelligent Communication that Automatically Scales and Adjusts Units on the Oscilloscope Display
Applications:
- Low Power Devices
- Service
- Manufacturing Engineering
- Test Research and Development
The Tektronix P6139B probes are high bandwidth, high impedance 10X passive voltage probes with 10 MΩ input resistance. These probes feature a small probe head and sharp tip that makes it easier to probe dense circuitry.
