Product Description:

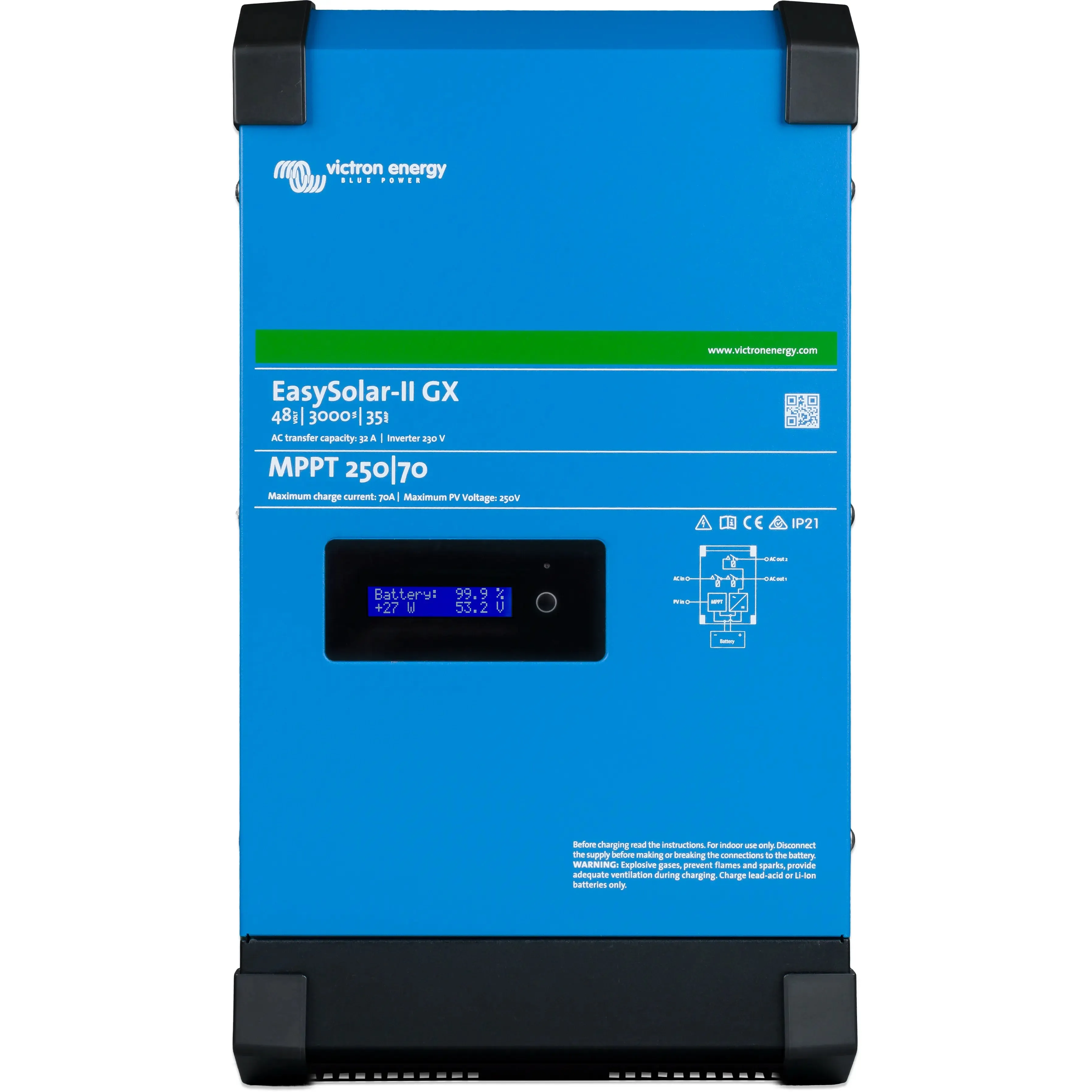

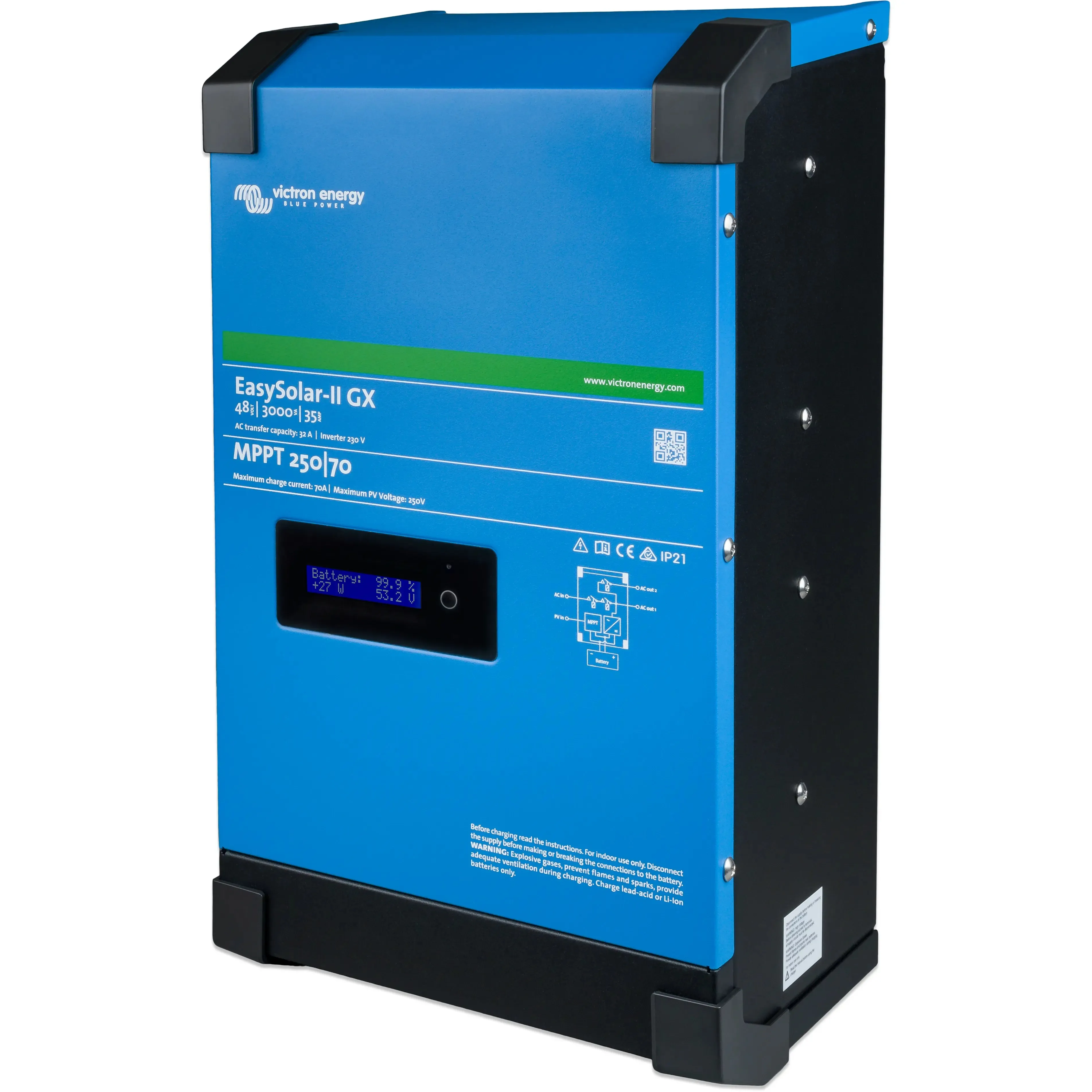

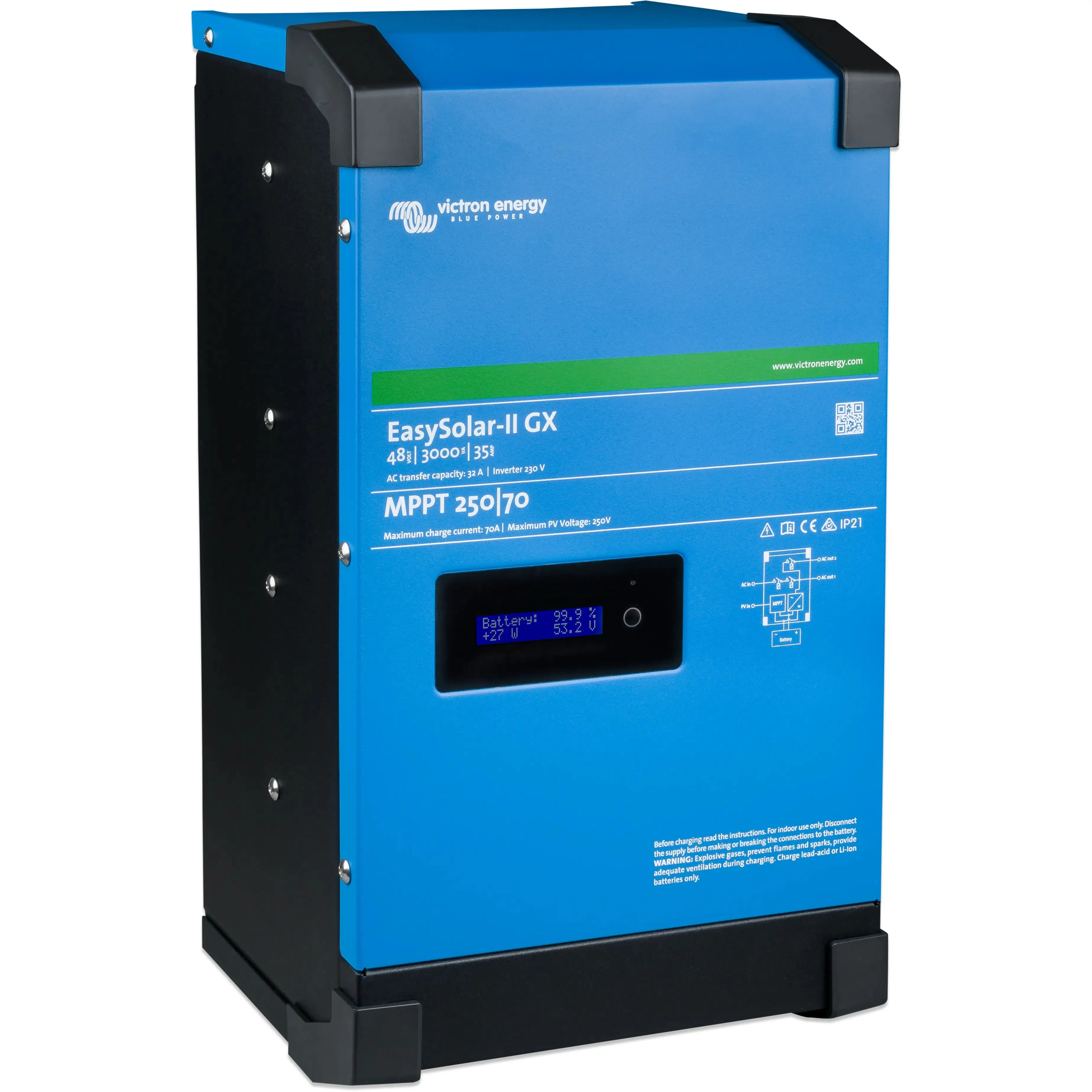

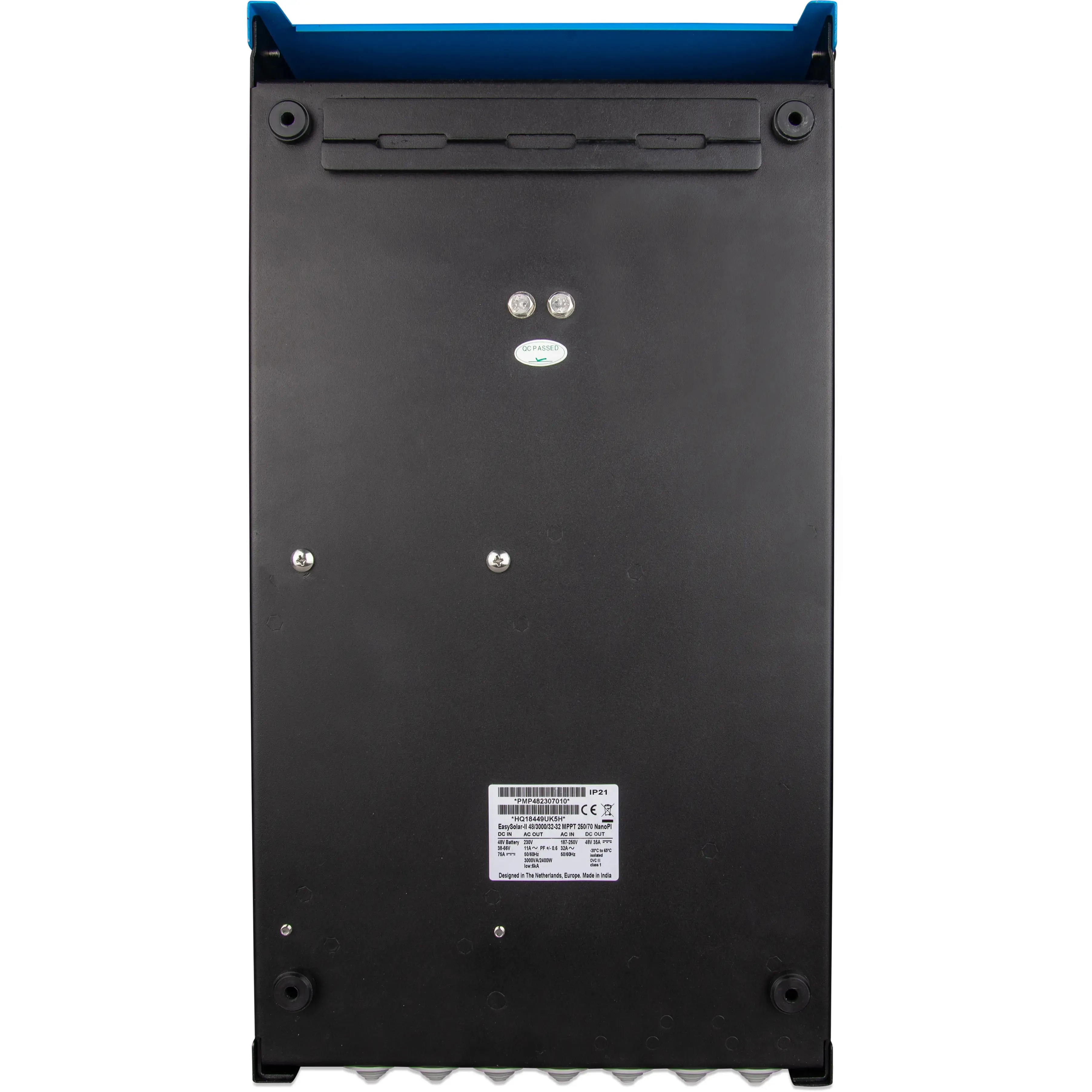

The Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX is an all-in-one solar power solution that combines a high-performance inverter, a solar charge controller, and a battery charger in a single device. Designed for use in a range of applications, including off-grid power systems and backup power systems, the EasySolar-II 48/3000/35-32 MPPT 250/70 GX is a powerful and versatile device that is easy to install and use.
Featuring a compact and rugged design and a range of advanced features, the EasySolar-II 48/3000/35-32 MPPT 250/70 GX is an excellent choice for anyone looking for a reliable and efficient solar power solution.
Specs
| Specification | Value |
|---|---|
| Inverter Power Output | 3000W |
| Nominal Battery Voltage | 48V |
| Maximum Efficiency | >92% |
| AC Output Voltage | 230V (adjustable) |
| Frequency | 50Hz/60Hz (auto-detection) |
| Output Waveform | Pure Sine Wave |
| Overload Capacity | 4800W for 5 seconds, 3600W continuous |
| Maximum Charge Current | 35A (at 48V) |
| AC Input Voltage Range | 187-265VAC |
| AC Input Frequency | 45Hz - 65Hz |
| Battery Voltage Range | 38-66V |
| MPPT Solar Charge Controller Power | 250V / 70A |
| Maximum PV Power | 2800W (12V), 5800W (24V), 11000W (48V) |
| Maximum PV Open Circuit Voltage | 100V |
| MPPT Efficiency | 98% |
| Charge Algorithm | Adaptive 4-stage charge |
| Communication Ports | Ethernet, USB, RS485, VE.Direct |
| Monitoring and Control | Color Control GX |
| Cooling | Fan-assisted, variable speed |
Features:
- All-in-one design: The EasySolar-II 48/3000/35-32 MPPT 250/70 GX combines an inverter, a solar charge controller, and a battery charger in a single device, simplifying installation and reducing the need for additional components.
- High power output: The device can deliver a continuous output power of 3000W, with a peak power output of 6000W for short periods.
- Advanced charging capability: The device features a powerful charging capability, with a maximum charge current of 70A, enabling it to keep your batteries topped up quickly and efficiently.
- MPPT solar charge controller: The device features an MPPT solar charge controller, which is designed to maximize the efficiency of your solar panels and ensure that your batteries are charged as quickly and efficiently as possible.
- GX device: The EasySolar-II 48/3000/35-32 MPPT 250/70 GX features a built-in GX device, enabling it to be connected to the internet for remote monitoring and control.
- Multiple protection features: The device features comprehensive protection against overvoltage, undervoltage, overtemperature, and short circuits, ensuring safe and reliable operation in all conditions.
- Efficient operation: The device is designed to be highly efficient, with a peak efficiency of up to 95%.
- Easy to use: The device is easy to install and operate, with a simple and intuitive user interface and easy-to-follow instructions.
- Durable construction: The EasySolar-II 48/3000/35-32 MPPT 250/70 GX is built to last, with a rugged construction that is designed to withstand the demands of daily use.
Whether you need a reliable solar power solution for your off-grid power system, backup power system, or mobile application, the EasySolar-II 48/3000/35-32 MPPT 250/70 GX is an excellent choice. With its all-in-one design, high power output, advanced charging capability, and comprehensive protection features, this device is sure to provide reliable and efficient power for your electrical devices and keep your batteries topped up for years to come. Plus, with its built-in GX device, you can monitor and control your power system from anywhere with an internet connection.
